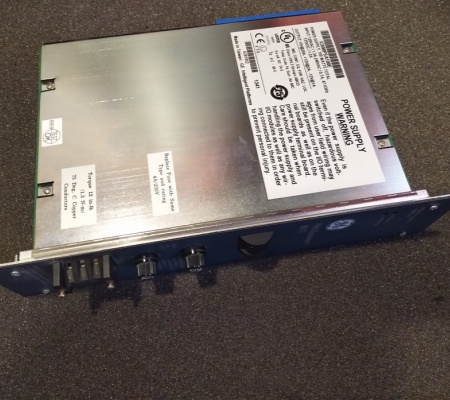

GE IC698PSA100 Power Supply Module
General info
| Manufacture | GE |
| Item No | IC698PSA100 |
| Article number | IC698PSA100 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Power Supply Module |
Detailed data
GE IC698PSA100 Power Supply Module
This PACSystems module delivers +5 VDC, +12 VDC, and -12 VDC power as well as logic level sequencing signals to modules on the backplane. The module plugs straight into slot 0 in the main rack. The IC698PSA100 module’s power supply output can lose up to one AC input line cycle without actually losing output power. Overcurrent, overtemperature, and overvoltage fault conditions are also protected. The module allows 100 watts total output power at ambient temperatures of 0 to 60ºC with no forced air cooling.
Output voltages are as follows: +5 VDC output up to 20 amps, +12 VDC output up to 2 amps, and -12 VDC output up to 1 amp. Additional features of the IC698PSA100 module include operation from 85 to 264 VAC or 100 to 150 VDC and power factor correction for AC operation. This module is designed for simple slide-in rack mount construction. The two-position On/Off switch is situated on the front faceplate. It is a logic level switch that enables or disables the output channels. This switch will not interrupt the AC line input.
