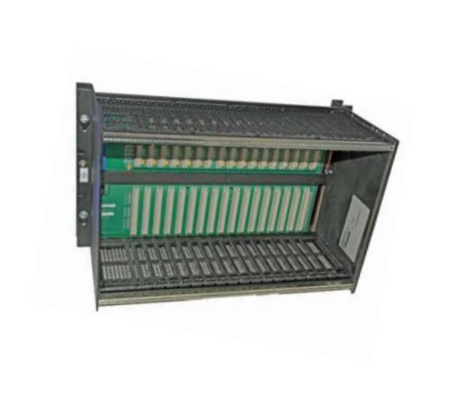

GE IC698CHS117 Rx7i 17-Slot Front Mount Rack
General info
| Manufacture | GE |
| Item No | IC698CHS117 |
| Article number | IC698CHS117 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Front Mount Rack |
Detailed data
GE IC698CHS117 Rx7i 17-Slot Front Mount Rack
The GE Fanuc IC698CHS117 RX7i I/O Rack is made for the Rx7i PACsystem series. The IC698CHS117 Rack is a wall-mounted 18-slot I/O rack built for the VME64 backplane system and high-level power supply. This I/O rack has up to 4 times more bandwidth strength than the standard VME backplane systems and thus it provides faster I/O throughput. The IC698CHS117 Rack supports the GE Fanuc Rx7i CPUs, Rx7i I/O modules, Series 90-70 I/Os, and all the standard VME modules. It has a slot-sensing feature for rack-type I/O modules and it is configured with programming/configuration software, eliminating DIP switches and jumper configurations.
The IC698CHS117 Rack supports high-wattage Rx7i power supplies and Rx7i AC power supply plug-ins. It has a power supply rating of 350 Watts and current ratings of 4 Amps at -12 Volts, 12 Amps at 12 Volts DC, and 60 Amps at 5.0 Volts DC input. The IC698CHS117 Rack has 18 I/O slots that support up to 15 single-width I/O modules without any double-width modules, 8 double-width modules, or a combination of double-width and single-width modules. The IC698CHS117 module’s slots are numbered 1 through 18, with an average slot-width of 0.8 inches. Slot 1 is always reserved for the CPU.
