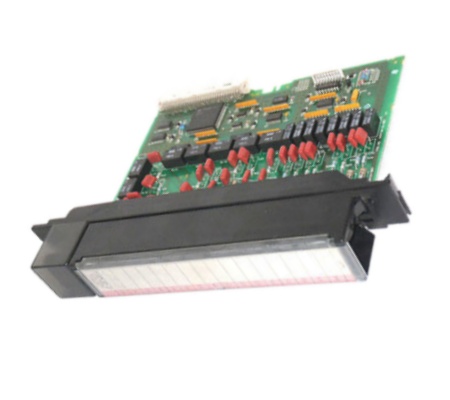

GE IC697MDL940 16-point Output Relay Module
General info
| Manufacture | GE |
| Item No | IC697MDL940 |
| Article number | IC697MDL940 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Output Relay Module |
Detailed data
GE IC697MDL940 16-point Output Relay Module
This module has a nominal voltage rating of 120/240 VAC or 5/24/125 VDC with a maximum power consumption of 480 VA for AC loads or 60 watts for DC loads. It has maximum load current ratings of 2.0 amps from 5 to 265 VAC at 47-63 Hz; 2.0 amps from 5 to 30 VDC; 0.2 amps from 31 to 125 VDC and 0.2 amps from 31 to 150 VDC applicable for Form A contact outputs only while the module’s minimum load current is 10 mA. Each output channel has a maximum response time of 10 ms for both On and Off signal transition and switching frequency of 20 Cycles per minute when used with an inductive load.
The IC697MDL940 output relay module is an output relay module designed and manufactured by GE Fanuc. The module is typically used with GE PLC devices from Series 90-70 and it is equipped with 3-Amp rated fuses for protection. The module has a typical contact life of 300,000 to 1,000,000 operations and it has a maximum load current of 0.1 to 2 Amps for a resistive load and 0.05 to 1 Amp for a inductive load. This particular GE Fanuc module is designed for both AC and DC operation and it includes operating voltage ratings of 120 to 240 Volts AC or 5, 24, or 125 Volts DC. The module has 16 outputs and it features an operating frequency of 47 to 63 Hertz (for AC voltage only).
