GE IC697MDL750 Discrete Output Module
General info
| Manufacture | GE |
| Item No | IC697MDL750 |
| Article number | IC697MDL750 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Discrete Output Module |
Detailed data
GE IC697MDL750 Discrete Output Module

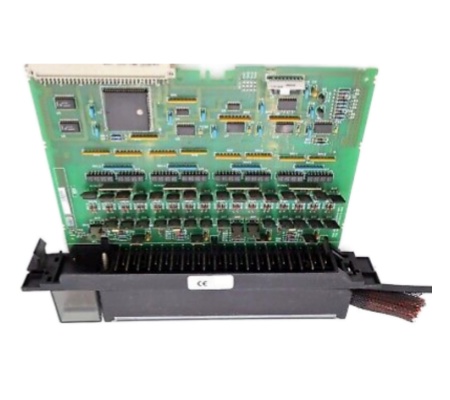

The IC697MDL750 is a Digital output module that is part of the Series 9-70 Programmable Logic Controller (PLC), formerly manufactured by GE Fanuc now under Emerson Automation. This module is a single slot module that mounts to a vacant slot of the Series 90-70 baseplate. It supports local I/O operation or as part of a larger distributed I/O architecture. The IC697MDL750 mainly features Thirty-Two (32) discrete output channels that deliver an output voltage range of 20-60 VDC with a rated voltage of 24 / 48 VDC. It can be used to energize a variety of electrical loads, to implement a manual or automated operation. Compatible devices include motor starters, solenoid-actuated devices, and Pilot lamps.
The IC697MDL750 output module has a total of 32 outputs arranged in equal isolated groups. The module features 10 Amps of inrush current for 20 milliseconds and 1 millisecond of response time (on/off). The IC697MDL750 output module has only 1 Volt (2 Ohms) of rated voltage drop for its outputs and it has an output voltage range of 20 to 60 Volts DC. The operating voltage of the unit is 24 to 48 Volts DC. The installation process of the module is easy and the wiring process is simple as well. The design of the module allows for effortless maintenance and its construction with a mechanical key leaves no room for error. Due to this key, any modules that are not the correct type of module will not fit into the slot reserved for the IC697MDL750 module. The module has a current rating of 0.5 Amps per point and the maximum current for the input group is 2 Amps.
