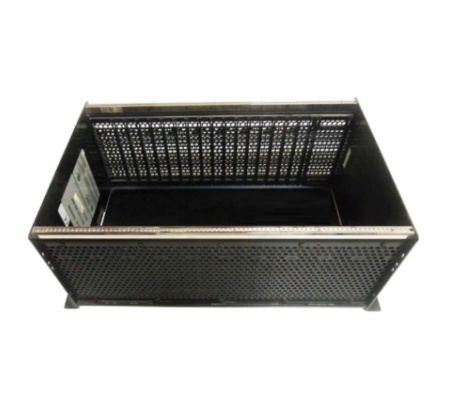

GE IC697CHS782 VME Integrator Rack
General info
| Manufacture | GE |
| Item No | IC697CHS782 |
| Article number | IC697CHS782 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | VME Integrator Rack |
Detailed data
GE IC697CHS782 VME Integrator Rack
The IC697CHS782 racks accommodate IC697 high density I/O modules and VME modules, which may have changing methods for connection of field devices. There is a succession of jumper positions located on the backplane that help provide flexibility for the two types of modules to be installed. The VME module types are in single slots, whereas the IC697 modules require two slots. The slots for the IC697 are identified by a number, arrow, and are branded as 1A-9A.
The IC697CHS782 rack mounts in a 10” enclosure intended to accept AC/DC plug in or can operate with an external power supply. A power supply adaptor module is necessary if using external source of power. Power requirements for two racks only need one power supply for many of the applications. The two-rack process using a single power supply can be applied if the second rack only requires +5-volt power of 5.2 amperes. There are interconnections needed that are provided with the use of an extension cable that is available by ordering. The extension cable joins to a 9-pin D type connector via a hole on the rack’s left side, which is located on the backplane. The rail located on the bottom of the rack is used for module shield grounding.
