GE IC697BEM713 Bus Transmitter Module
General info
| Manufacture | GE |
| Item No | IC697BEM713 |
| Article number | IC697BEM713 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Bus Transmitter Module |
Detailed data

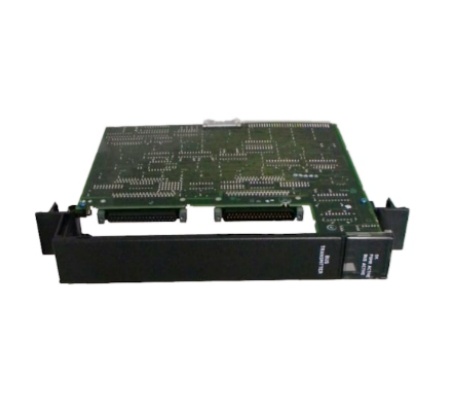

GE IC697BEM713 Bus Transmitter Module
The IC697BEM713 module resides in a single slot and has two connectors, a top connector for attaching to the programming device and a bottom connector, which is for a daisy-chained arrangement via BRMs to expansion racks. The bus transmitter module should be configured using the MS-DOS or Windows programming software configuration function.
The GE Fanuc IC697BEM713 module is a bus transmitter module from Series 90-70. It permits expansions from the main rack when additional modules are required in the system. The IC697BEM713 module allows for expansion to an additional seven IC697 PLC racks. The IC697BEM713 module also provides a parallel interface which can be used by a programming device. The IC697BEM713 module occupies one slot in the rack. There are 2 connectors on the IC697BEM713 module: the connector on the top is provided for interfacing with a programming device and the connector on the bottom allows for daisy-chain configuration to expansion racks through bus receiver modules.
