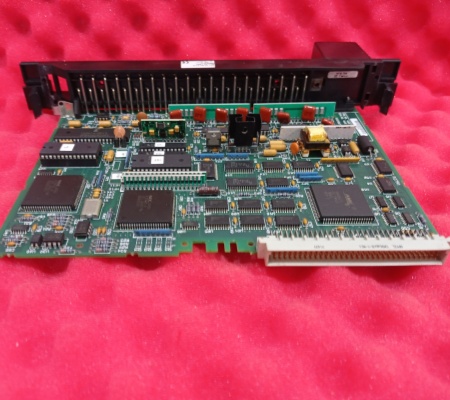

GE IC697ALG230 Base Converter Module
General info
| Manufacture | GE |
| Item No | IC697ALG230 |
| Article number | IC697ALG230 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Base Converter Module |
Detailed data
GE IC697ALG230 Base Converter Module
This module is part of a high-level analog system that comes with Eight (8) differential inputs individually configurable for voltage or current signals particularly, 4-20 mA current output signal and -10VDC / +10 VDC voltage output signals with a channel resolution of 16-bits. The IC697ALG230 supports the installation of expander modules with catalog numbers IC697ALG440 Voltage Expander Module and IC697ALG441Current expander modules. These expander modules enhance the capability of the base converter module, enabling the accommodation of up to Sixteen (16) channels of the same signal types.
The IC697ALG230 Base Converter Module has 2.4 milliseconds to 2.8 milliseconds of fast update rate times. It has an expansion port that is used to connect the voltage or current expander module. In order to increase the number of inputs, the module is capable of handling up to 7 expander modules. The IC697ALG230 Base Converter Module uses an efficient input sampling technique with a fast update rate. It also has a serial communication port that can be used to control the expanders via the processor of the base converter module. After connecting the maximum number of expander modules, the system can have a maximum of 120 inputs.
