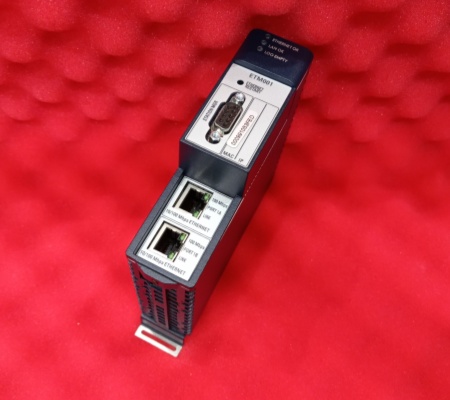

GE IC695ETM001 RX3i Ethernet Module
General info
| Manufacture | GE |
| Item No | IC695ETM001 |
| Article number | IC695ETM001 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Ethernet Module |
Detailed data
GE IC695ETM001 RX3i Ethernet Module
The IC695ETM001 has an Ethernet processor speed of 200 MHz. It is provided with LED status indicators, such as Ethernet OK, LAN OK, Log Empty, Individual port and speed LED status indicators.
When installing the IC695ETM001, compatible backplane for use are IC695CHS007, CHS012 or CHS016. It is compatible with any other PACSystem RX3i module except the CPE400. It is ideally installed to an unpowered RX3i backplane however, supports insertion under power or even when the processor is in RUN mode. This is also known as Hot-Swap capability. To enable hot swap, firmware revision 2.51 must be installed.
A RS-232 serial port is also provided on the IC695ETM001 module and supports data rates of 1200 bps to 115200 bps. The built-in Station Manager function of the module can be accessed over both serial and Ethernet connections and it provides supervisory access. The services available through Station Manager include commands for polling and controlling the station, access for monitoring the statistics, logs, and configuration parameters, and password security. The IC695ETM001 module can be used for synchronizing the timestamps of EGD exchanges through the SNTP protocol. Features of the IC695ETM001 modules include PLC configuration and programming features, periodic data exchange through EGD, TCP/IP communication over SRTP, and diagnostic and station management tools.
