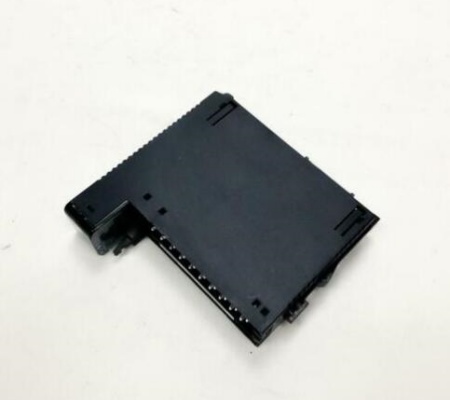

GE IC694ALG392 RX3i Analog Output Module
General info
| Manufacture | GE |
| Item No | IC694ALG392 |
| Article number | IC694ALG392 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Analog Output Module |
Detailed data
GE IC694ALG392 RX3i Analog Output Module
This output module is typically used in analog control loops where modulating control is needed aside from ON/OFF control. This analog output module may be linked internally to the controller’s PID controller for automatic control and manual loaders whether hardwired or software based for manual mode of control. Additionally, it is also possible to use this module to re-transmit signals and interface with process data loggers, measuring instruments, totalizers, converters, isolators and other instruments and devices that are compatible with the output signals of this module. This module may be installed to any available slot of an existing RX3i PACSystem.
The update rate of the GE Fanuc IC694ALG392 Analog Module is 8 milliseconds for the 8 output channels that are involved, making the IC694ALG392 Module an excellent option for controlling quickly-changing applications in the field. When connected to a GE Fanuc Series 90-30 or 90-70 PLC, the module can work by using the 5 Volts DC power supply from PLC&’s backplane. The power consumption of the module automatically adapts its value according to the power supply that is being used, and it can be 315 milliamps when it is supplied from an external 24 Volts DC power source or 110 milliamps when it is connected to a PLC backplane. The environmental protection for the modules must be provided by the users since the low IP rating of the system makes it very sensitive to moisture or extreme temperature variations.
