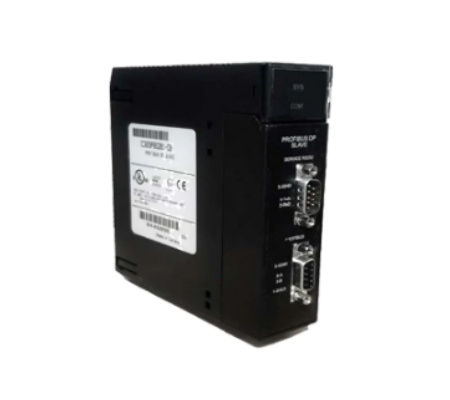

GE IC693PBS201 Profibus DP Slave Interface Module
General info
| Manufacture | GE |
| Item No | IC693PBS201 |
| Article number | IC693PBS201 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Slave Interface Module |
Detailed data
GE IC693PBS201 Profibus DP Slave Interface Module
This module enables the implementation of distributed I/O architecture as it is installed to any Series 90-30 baseplate, acting as a remote adapter for its hosted I/O modules. It can send and receive up to 244 Bytes of input and 244 Bytes of output data to and from the designated Profibus master over the Profibus communication network at transmission speeds of 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5Mbps, 3 Mbps, 6Mbps and 12 Mbps. This module comes with Two (2) communication interfaces in the form of 9 pins D-shell connectors. One port of this module functions as the service port, enabling module firmware modification.
The GE Fanuc IC693PBS201 Profibus DP Slave Module Card allows for the connection of a GE Fanuc Series 90-30 Programmable Logic Controller into a PROFIBUS DP network as a slave device, that is, a secondary PLC that sends and receives data from the network’s master PLC to expand the processing power of the system as a whole. Users can customize the control algorithm and configure the programs stored in the slave PLC by using version 2.6 or later of the GE Fanuc Proficy Machine Edition Logic Developer software.
