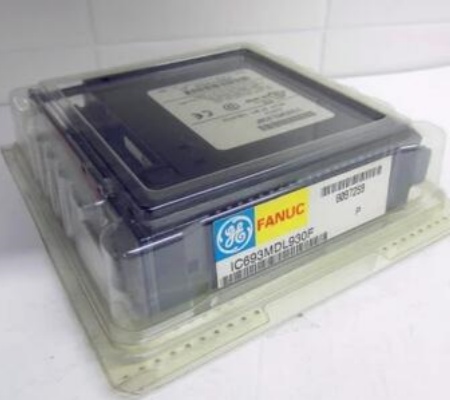

GE IC693MDL930 4 Amp Isolated Relay Output Module
General info
| Manufacture | GE |
| Item No | IC693MDL930 |
| Article number | IC693MDL930 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Relay Output Module |
Detailed data
GE IC693MDL930 4 Amp Isolated Relay Output Module
This module is a single-slot width, Eight (8) individually isolated Normally Open (N.O.) contact of Form A outputs that are compatible for use with the Series 90-30 modular and embedded Central Processing Unit (CPU) module assemblies as local and distributed I/O component. Additionally, this module also supports the modern RX3i and RX7i systems as distributed output modules. This module is compatible for use with motor starters, solenoid-actuated devices, and indicating lamps. The IC693MDL930 contact outputs have current ratings of 4 Amperes, maximum for resistive loads per point; 2 Amperes for pilot duty loads per point, and 20 Amperes per module for UL installations while the module’s minimum load is 10 mA. Each contact output is operable at nominal voltages of 24 VDC and 120 / 240 VDC while operating voltage ranges are 5-30 VDC / 5-250 VAC at a frequency of 50/60 Hz. It also generates a maximum inrush current of 5 Amperes while the maximum channel response time is 15 ms for both On and Off signal transition.
The IC693MDL930 output module can be installed in any slot of a 5-slot or 10-slot backplane in a GE Fanuc 90-30 PLC system. The IC693MDL930 module has 8 normally open relay circuits for managing user loads. The output switching capacity of the individual module outputs is 4 Amps. Each module output is isolated from the other module outputs and each module output has its own common terminal. The IC693MDL930 module does not include any fuses. The power supply for the user field devices connected to the module outputs needs to be user-supplied.
