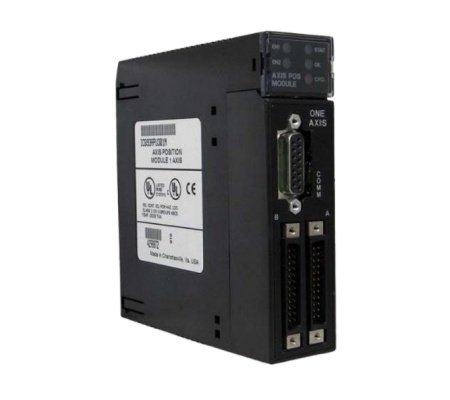

GE IC693APU301 Motion Mate 1-Axis Positioning Module
General info
| Manufacture | GE |
| Item No | IC693APU301 |
| Article number | IC693APU301 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Positioning Module |
Detailed data
GE IC693APU301 Motion Mate 1-Axis Positioning Module
The IC693APU301 when configured in standard mode, this APM module combined PLC Logic and high-performance motion control of the IC693APU301 for creating a single integrated system. It also supports follower mode wherein the APU provides high-performance electronic gearing for continuous master and slave applications. This module comes with One (1) 9-pin D-shell axis port connector and One (1) high-density port for APM connections. It also has LED status indicators such as EN1, EN2, STST, OK, and CFG LEDs. This module is compatible for use with a variety of CPUs such as CPU 311, CPU 313 and CPU 323 wherein up to Three (3) APM modules can be installed. When used with CPU 331 and higher, up to Eight (8) APM modules can be installed with a maximum of Three (3) APM module instances per baseplate.
The GE Fanuc IC693APU301 Axis Positioning Module or APM is a single-axis motion control module that is made for the Series 90-30 PLCs or programmable logic controllers. It is easy to use and it is a fully programmable module that allows the users to integrate high-performance control into their PLC systems. The IC693APU301 Axis Positioning Module can be set to operate in the follower mode or in the standard mode. The follower mode offers electronic gearing for continuous applications. When this module is used with the Series 90-30 PLCs, it operates as a combined motion control package. This APM controls the motion of the axis while the PLC it is connected to transfers data automatically between the PLC tables and the APM. The IC693APU301 Axis Positioning Module can be installed in any Series 90-30 CPU or expansion baseplate.
