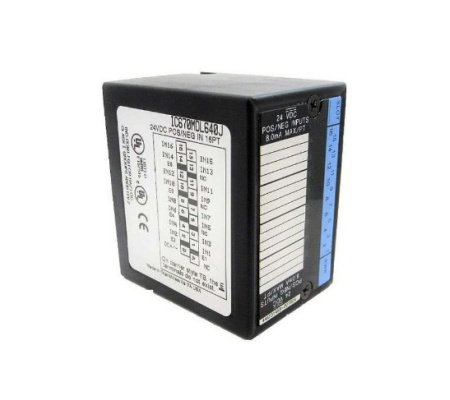

GE IC670MDL640 16-Point Discrete Input Module
General info
| Manufacture | GE |
| Item No | IC670MDL640 |
| Article number | IC670MDL640 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Discrete Input Module |
Detailed data
GE IC670MDL640 16-Point Discrete Input Module
This module is a designed to function as an expansion input module that is installed along the module where the Bus Interface Unit (BIU) module resides. It comes with a Sixteen (16) input channels that support positive and negative logic wiring configuration. With the support for such wiring configurations, this module is applicable in different regions as Positive and Negative logic wiring utilization is sometimes dictated by the applicable standard within a specific region or area of installation. The IC670MDL640 input channels are designed to accept input signal voltage range of 0-30 VDC with nominal voltage of 24 VDC and user input current of 7.5 mA per point.
IC670MDL640 module is one of the Field Control units available through the IC670 product line by GE Fanuc. This module features 16 inputs with positive/negative logic and it allows the users to use the inputs according to the requirements of an application. The IC670MDL640 discrete input module supports special keying capabilities and it attaches to the appropriate terminal block. The unit is compatible with various programmable logic controllers and it is intended for usage with models with the catalog numbers IC670 and IC670MDL.
