GE IC660TBD024 DC sink I/O terminal Block
General info
| Manufacture | GE |
| Item No | IC660TBD024 |
| Article number | IC660TBD024 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | I/O terminal Block |
Detailed data

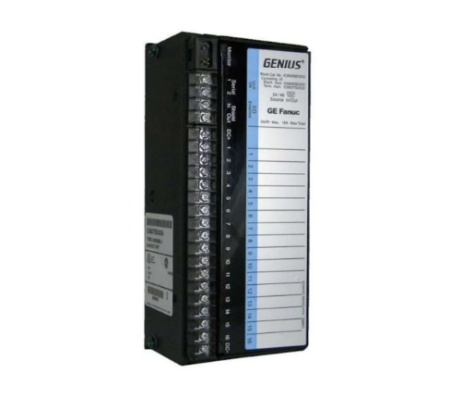

GE IC660TBD024 DC sink I/O terminal Block
The IC660TBD024 terminal assembly is part of the Genius I/O series and it is manufactured by GE Fanuc. The terminal is designed for use with DC power and it includes 32 discrete inputs and outputs. The operating voltage range of the unit is 10 to 30 Volts DC while it rated voltage is 12 or 24 Volts DC. The block to block isolation rating is 850 Volts while its maximum heat dissipation rating is 18 Watts.
The IC660TBD024 terminal assembly is compatible with several Genius I/O devices that include the code "IC660" in the part number and it can be combined with a variety of devices that are used for the input of data. The supported input devices include proximity switches with either 2 or 3 wires, contactors, lamps, and relays. The IC660TBD024 terminal assembly has configurable features like controls for the bus switching module, output pulse test capabilities, output powerup settings, and a selectable input filter. The terminal assembly features a typical input impedance of 3.3 kiloohms and various selectable times for the input filter. The time needed for input processing is 1.4 milliseconds. The IC660TBD024 terminal assembly has an output voltage drop of 2 Volts at a current inrush rating of 4 Amps. The maximum output current is 0.5 Amps per circuit.
