GE IC660BBD110 Discrete Input Block
General info
| Manufacture | GE |
| Item No | IC660BBD110 |
| Article number | IC660BBD110 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Input Block |
Detailed data

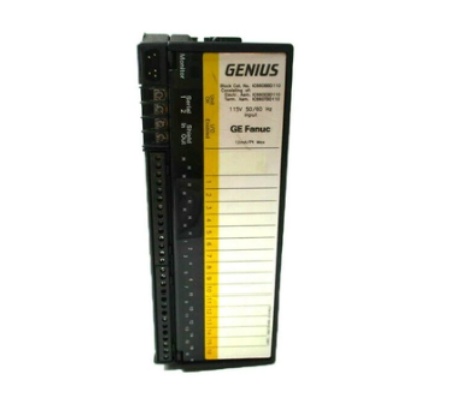

GE IC660BBD110 Discrete Input Block
LEDs on the IC660BBD110 input block work together with diagnostic software to prompt or alert the user if a switch fails, if temperature is above threshold levels, or if a load exceeds design parameters. Input thresholds for each block can be programmed. If an LED displays ON for an input circuit, this indicates threshold voltage. In the case of output circuits, a lit LED indicates that the specific circuit is working normally as expected via commands from the CPU. The I/O LED emits steadily when the CPU is running and communicating.
Fault reporting to the CPU can be enabled or disabled on a circuit-by-circuit basis. If fault reporting is disabled, data that would have gone to both the CPU and the handheld monitor is sent only to the handheld monitor. Distribution of IC660BBD110 block’s input and output circuits can be configured as either all output, input, or a combination of the two. The user should always disconnect power first before wiring to ensure safe removal of the block.
