GE IC660BBD021 Sink I/O Block
General info
| Manufacture | GE |
| Item No | IC660BBD021 |
| Article number | IC660BBD021 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Sink I/O Block |
Detailed data

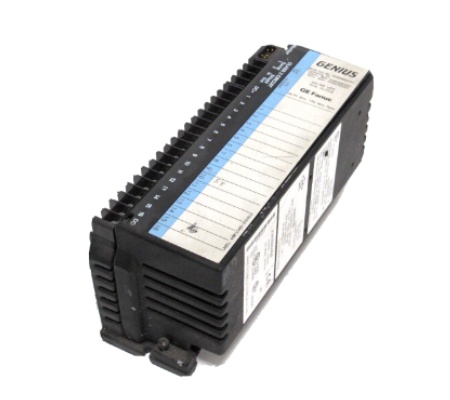

GE IC660BBD021 Sink I/O Block
The GE IC660BBD021 I/O block is an I/O module with 16 circuits. It is a sink I/O block powered with 24 to 48 Volts DC. This module is capable of working as an input, tristate input, or output module. It is fully compatible with a 3-wire sensor. No separate power supply block is required for this I/O block variant. The I/O block is able to communicate with 3-wire solid-state sensors and electromechanical sensors. The module is manufactured in a compact size of 8.83 inches in height, 3.56 inches in width, and 4.42 inches in depth. It weighs around 4 pounds. The front section of the module has 16 circuits with individual load side indicators. They are illuminated when a connection is made to that specific circuit.
The IC660BBD021 I/O block can be easily connected to a handheld monitor by using the monitor port on the upper section of the block. The GE IC660BBD021 I/O block is considered to be open equipment and it should be installed in a protective enclosure. The installation area should be clean and free from dust and dirt. The block uses a convection cooling method to maintain its ambient operating temperature and there should always be proper airflow. The IC660BBD021 I/O block comes with diagnostics and protective features that include electronic short-circuit protection, overload and over-temperature detection, and failed switch and no-load detection. The IC660BBD021 I/O block comes with Serial Port 1 and Serial Port 2 along with a Shield In Port and a Shield Out Port. Two LED indicators known as the I/O Enabled and Unit OK indicators are present on the front of the block. The isolation block to block voltage rating is 1500 Volts. The power supply dropout time is 10 milliseconds.
