GE IC660BBD020 Discrete I/O Module
General info
| Manufacture | GE |
| Item No | IC660BBD020 |
| Article number | IC660BBD020 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Discrete I/O Module |
Detailed data

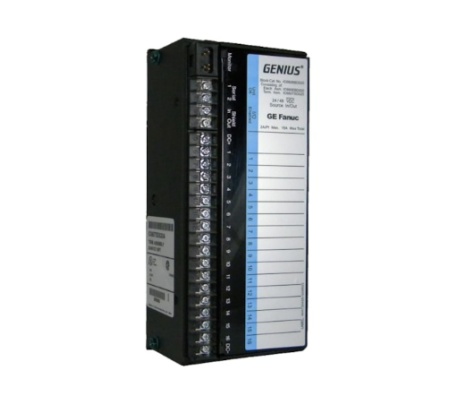

GE IC660BBD020 Discrete I/O Module
The IC660BBD020 sink I/O block is a 3-wire sensor compatible device designed by GE Fanuc. The block runs with 16 circuits and it has a voltage rating of 24 / 48 Volts DC. This module is compatible with the GE Series 90-30 PLC systems. It can be programmed and monitored easily with a controller or handheld monitoring device. It can also be connected to a personal computer running the Windows operating system. The current rating for the load of the module is 2 Amps. The IC660BBD020 I/O block has a powerful diagnostics system and it can monitor short circuits, over-temperature, overload, no-load, and failed switch situations. The module can be used to work as an input, output, or a tristate input device. The input filter time can be selected for the module between 10 and 100 milliseconds. The advanced diagnostics system of the block can easily troubleshoot issues and errors during the installation and operation.
The GE IC660BBD020 I/O block has an input processing time of 1.7 milliseconds with a filter delay. The input impedance of the block is 5.6 kiloohms for 24 to 48 Volts of voltage and 1.8 kiloohms for 24 Volts of voltageThe I/O block is built with open architecture and it is made for indoor use only. The maximum environmental temperature should not exceed 60 degrees Celsius with proper airflow across the block. The IC660BBD020 I/O block should be kept away from EMC noise and heat-generating devices. The module can be mounted easily in both horizontal and vertical positions. To provide ground integrity, star washers are used. The I/O block is backwards-compatible and it can also be used with older pre-existing PLC systems.
