GE IC660BBA026 Genius Block I/O Module
General info
| Manufacture | GE |
| Item No | IC660BBA026 |
| Article number | IC660BBA026 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Genius Block I/O Module |
Detailed data

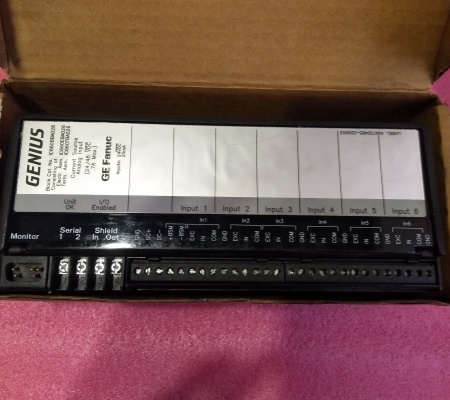

GE IC660BBA026 Genius Block I/O Module
The GE Fanuc Genius IC660BBA026 is a 24/48 volt DC Current-Source Analog Input Block. IC660BBA026 block is typically used to interface a controller to devices that transmit signals in the range of 4 to 20mA. The IC660BBA026 block has six 4-to-20mA input circuits with isolated channels. Each input provides a 24 volt current loop power supply that generates up to 25mA of current. Six independent inputs are isolated from all the other circuits on the block. Input accuracy is 0.1%. Input conversion time is selected to provide the right combination of noise rejection and input resolution. The IC660BBA026 block has programmable conversion times that range from 16ms - 400ms. Resolution notably increases as the conversion time lengthens. Input resolution is 1µA for 200mS conversion time.
The IC660BBA026 Current-Source Input Block is a 6-input analog current source block from GE Fanuc. It can be used to interface with devices that put out 4 to 20 milliamps of analog signal current. A Phase B hand-held monitor can be used to configure the module easily. Its voltage to frequency converter feature provides a digital signal based on the analog current that is received. The users have the facilities to set upper and lower alarm limits to the individual input circuits. And the input circuits consist of 24 Volts rated current loops that can provide 25 milliamps of current.
