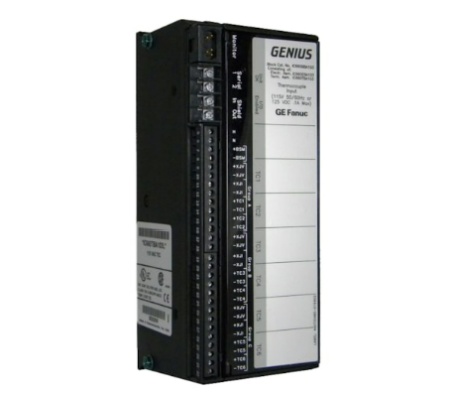

GE IC660BBA023 Thermocouple Input Genius I/O Block
General info
| Manufacture | GE |
| Item No | IC660BBA023 |
| Article number | IC660BBA023 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | I/O Block |
Detailed data
GE IC660BBA023 Thermocouple Input Genius I/O Block
The IC660BBA023 is a thermocouple manufactured by GE Fanuc. IC660BBA023 has a power supply voltage of 18-56 VDC at 9W, 10% max ripple. The IC660BBA023 consists of a thermocouple input block with three isolated pairs of inputs. The system is configured with transformers to isolate power and optical couplers for appropriate signal isolation.
The IC660BBA023 block to block isolation is 1500 V for one minute, while the group to group isolation is at 300V. The IC660BBA023 block power supply system is designed with a power supply dropout time of 10mS minimum. Power system design facilitates the optimum power to weight ratio of the thermocouple, ensuring that operating power loads are kept to a minimum, while facilitating desired operating performance.
IC660BBA023 facilitates temperature change detection. IC660BBA023 has a voltage measurement of -25.0mV to +150 mV. Internal cold junction measurements of the IC660BBA023 facilitate an operating range of 0-60 C, while external cold junction measurement facilitates an operating range of -25.0C to +150.0C.
