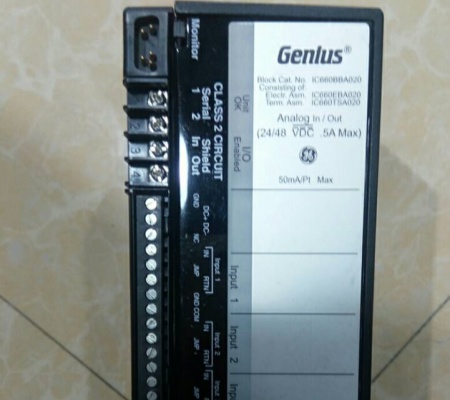

GE IC660BBA020 Voltage/Current Combination I/O Module
General info
| Manufacture | GE |
| Item No | IC660BBA020 |
| Article number | IC660BBA020 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | I/O Module |
Detailed data
GE IC660BBA020 Voltage/Current Combination I/O Module
The IC660BBA020 is a Genius I/O block. This module is specifically a combination analog I/O module that features Four (4) analog input channels that accommodates 0–10 VDC, 10 VDC, 5 VDC, 0–5 VDC, 4–20 mA (or 1–5 VDC) input signals and Two (2) analog output channels supporting 0–10 VDC, 10 VDC, 5 VDC, 0–5 VDC, 4–20 mA (or 1–5 VDC). It has integral converter circuitry with converter resolution of 12-bit resolution plus sign. This module is independently powered, with input voltage of 18-56 VDC with nominal supply of 24 VDC. It has an embedded support for Genius Bus protocol, allowing this module to exchange I/O data with Genius Bus masters over the network.
The IC660BBA020 Analog I/O Block is a GE Fanuc I/O block that comes with 4 input circuits, 2 output circuits, and 2 block versions. It offers 5 analog power ranges which are 0 to 10 Volts DC, -5 Volts DC to +5 Volts DC, -10 Volts DC to +10 Volts DC, 0 to 5 Volts DC, and 4 to 20 milliamps/1 to 5 Volts DC. The IC660BBA020 Analog I/O Block also provides independent scaling and fault reporting facilities for individual input and output channels. The typical thermal drift of the module at 25 degrees Celsius is 10 PPM per degree Celsius. The users can use any GE Fanuc IC66 handheld monitor with this GE I/O block module. It also offers advanced diagnostics facilities to generate fault messages.
