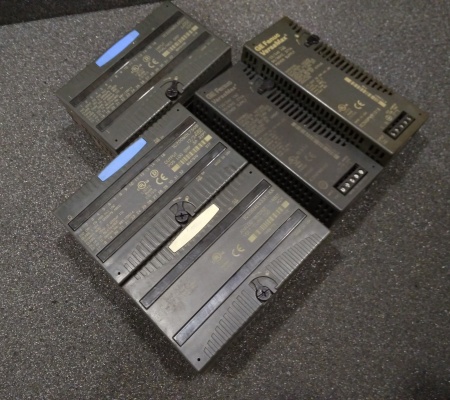

GE IC200PWR102 120/240VAC Expanded 3.3V Power Supply Module
General info
| Manufacture | GE |
| Item No | IC200PWR102 |
| Article number | IC200PWR102 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Power Supply Module |
Detailed data
GE IC200PWR102 120/240VAC Expanded 3.3V Power Supply Module
The IC200PWR102 is an expanded power supply module that is part of the VersaMax product family. This module is currently manufactured by Emerson Automation, formerly by GE Intelligent Platforms (GE IP). It is mainly used to deliver power to VersaMax backplane which is utilized by the installed modules to power up individual internal circuitries for operation. The IC200PWR102 is operable when connected to an external power supply that delivers 85-132 VAC (120 VAC, nominal) and 176 - 264 VAC (240 VAC, nominal), input frequency range of 47-63 Hz, and input power of 27 VA.
The GE Fanuc Versamax IC200PWR102 expanded power supply unit supplies power to devices that are connected to the backplane of PLC such as network interface units (NIUs), input and output units (I/O), and central processing units (CPUs). It uses AC power as the main power source unlike other types of modules from the Versamax series that use DC power. Although it serves as the primary power supply in the PLC, it can also be used as a secondary power supply when connected to a power supply booster carrier. The IC200PWR102 expanded power supply unit has an input voltage of 120 to 240 Volts AC and an output voltage of 5 Volts DC and 3.3 Volts DC. The module has an extended power feature, which means that the power can be expanded up to 3.3 Volts DC. It has an input power of 27 Volts-Amps and a holdup time of approximately 20 milliseconds.
