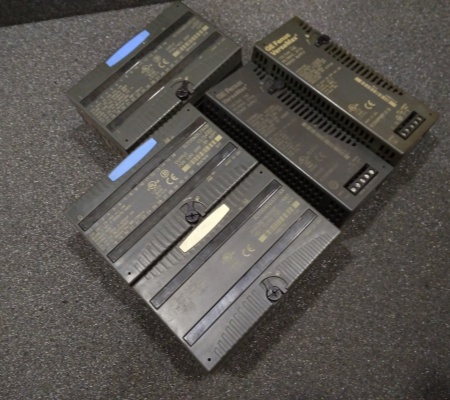

GE IC200PWR101 120/240 Volts AC Power Supply Module
General info
| Manufacture | GE |
| Item No | IC200PWR101 |
| Article number | IC200PWR101 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Power Supply Module |
Detailed data
GE IC200PWR101 120/240 Volts AC Power Supply Module
This product is intended to provide power to various modules and devices mounted to the rack backplane such as central processing units, network interface units, and numerous types of I/O units. This module is capable of serving as both a primary and secondary power source. It functions as a secondary source when connected to a booster carrier. The IC200PWR101 uses alternating current for its input voltage and input power, unlike some other VersaMax power units, which primarily use direct current.
Input voltage for the IC200PWR101 is determined by voltage range and jumper installation. If a jumper is installed, the input voltage can range from 85 volts to 132 volts AC, with 120 volts AC being nominal. If no jumper is installed, the input voltage can range from 176 volts to 264 volts AC, with 240 volts AC being nominal. The IC200PWR101 can operate at 120 volts AC without a jumper installed. Warning: Jumpers must not be used at 240 volts input voltage.
