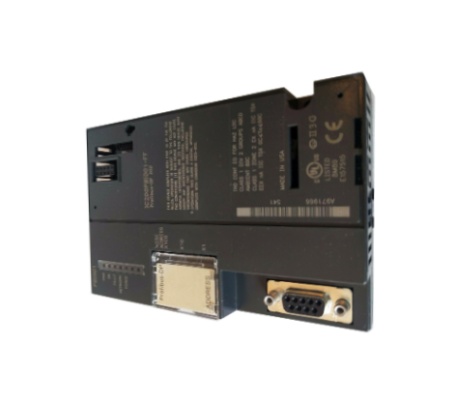

GE IC200PBI001 VersaMax Profibus Network Interface Module
General info
| Manufacture | GE |
| Item No | IC200PBI001 |
| Article number | IC200PBI001 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Interface Module |
Detailed data
GE IC200PBI001 VersaMax Profibus Network Interface Module
The IC200PBI001 is Profibus-DP Network Interface Unit (NIU) that functions as a slave on a Profibus-DP network designed by GE for the VersaMax Series. The IC200PBI001 acts as a controller for a set of I/O modules. The module operates off a provided power supply that installs directly onto the NIU.
The network address for the IC200PBI001 is 1 to 125 with a network data rate of 9.6Kbaud to 12Mbaud, auto-detected. There is a maximum of 375 bytes of I/O data with up to 244 byes of inputs or 244 bytes of outputs. The IC200PBI001 can control 64 I/O modules per NIU.
The GE Fanuc IC200PBI001 Network Interface Unit features 5 LED indicators that help the operators to monitor the power as well as the NIU’s status. If the power is applied, the “PWR” LED indicator turns green and when the “OK” LED indicator is green, then it means the firmware is functional. When the “FAULT” LED indicator is amber, it means that the IC200PBI001 NIU has an internal fault. Additionally, the “NETWORK” LED indicator can glow amber or green or turn off. The green light indicates a successful transfer of I/O data on the network. The amber light means that the configuration sent by the master device is rejected. When the “NETWORK” LED indicator turns off, it means there is no communication with the master device. Additionally, there is a “FORCE” LED indicator which specifies the presence of forced input and output values. The IC200PBI001 Profibus NIU is well matched with all the VersaMax high-density analog modules.
