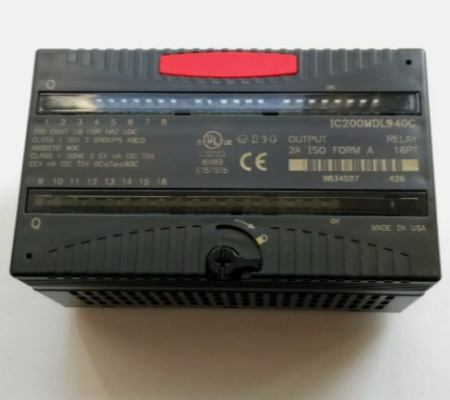

GE IC200MDL940 VersaMax Discrete Output Module
General info
| Manufacture | GE |
| Item No | IC200MDL940 |
| Article number | IC200MDL940 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Output Module |
Detailed data
GE IC200MDL940 VersaMax Discrete Output Module
The IC200MDL940 is a Form A Relay VersaMax Output Module from General Electric with a total of 16 output points. The output points for this device are divided into two groups of eight, and each point is also isolated individually. Group to group and channel to channel isolation are also possible. The IC200MDL940 has fixed coil relay types with moving armatures, and the contact types are silver. This module is compatible with both the IC200CHS101 and IC200CHS102 series of VersaMax interposing disconnect bases.
The load current for each point is a minimum of 10 milliamps; however, this will change depending on voltage conditions. With 5 to 265 volts of alternating current, the load per point will be 2 amperes maximum. When using 5 to 30 volts direct current, the load per point will also be at most 2 amperes. With 31 to 125 volts direct current, the load per point will be 0.2 amperes. Note: These load currents are all resistive. Thermal derating, fuses, and snubbers are not applicable to the IC200MDL940.
