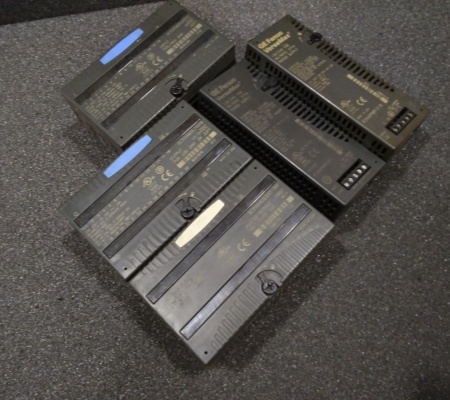

GE IC200MDL750 Discrete Output Module
General info
| Manufacture | GE |
| Item No | IC200MDL750 |
| Article number | IC200MDL750 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Output Module |
Detailed data
GE IC200MDL750 Discrete Output Module
The IC200MDL750 is a VersaMax output module made by General Electric Fanuc Automation. This module has a combined total of 32 output points spread across two groups of 16. Each output point is discrete, meaning that signals can only have two states on or off and open or closed, for example. The discrete outputs for this module can be positive logic or sourcing types, and their job is to perform positive load switching to the direct current (DC) power supply and give power to the loads.
The IC200MDL750 does not support isolated points or channels, but it can isolate each group of 16 points. Thermal derating is also possible with this module with the number of concurrently active points being dependent on different scenarios. For field wiring, in addition to the output points, each group of 16 outputs has a terminal for DC+ and DC-. When using inductive load wiring, it is advisable to use external suppression circuits.
