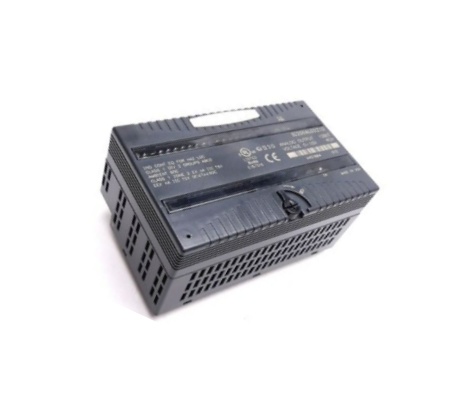

GE IC200ALG321 4-Point Analog Current Output Module
General info
| Manufacture | GE |
| Item No | IC200ALG321 |
| Article number | IC200ALG321 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Output Module |
Detailed data
GE IC200ALG321 4-Point Analog Current Output Module
The IC200ALG321 generates 0-10 VDC output voltage with resolution of 12-bits or digital resolution of 2.5 mV and maximum channel update rate of 0.3 ms. This module supports single-ended wiring and comes in a single group of output channels with group isolation rating of 250 VAC, continuous and 1500 VAC for 1 minute duration. The built-in status indicators available to this module are FLD POWER LED and an OK LED that indicates active field power and backplane power both present and received by the module, respectively. This module has maximum backplane current consumption of 50 mA. The IC200ALG321 requires an external power supply to operate. Applicable supply voltage ranges are 18-30VDC or 9.6 to 15 VDC, with nominal supply voltage of 12 / 24 VDC.
The GE Fanuc IC200ALG321 module is a 12-bit analog output module that comes with 4 channels and it is intended to provide a connection between different output devices and the main processor. This specific module has been included in the Versamax product line by GE Fanuc Automation. This module provides 4 analog voltage outputs that operate with a rating between 0 and 10 Volts DC each. This module provides a 12-bit resolution and digital resolution of 2.5 millivolts. The resolution level is highly affected by the radiofrequency interference produced by nearby equipment. If there is radiofrequency interference in the environment, the resolution of the module might need to be degraded by at least +/-1 percent. The GE Fanuc Automation IC200ALG321 12-bit analog output module comes with 2 LED indicators used to indicate backplane current is connected and presence of the user-side power to feed the analog-field circuits.
