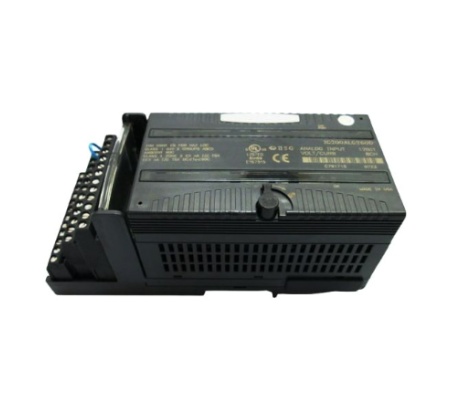

GE IC200ALG260 Analog Input Module
General info
| Manufacture | GE |
| Item No | IC200ALG260 |
| Article number | IC200ALG260 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Input Module |
Detailed data
GE IC200ALG260 Analog Input Module
The IC200ALG260 is an analog input module from the Versamax I/O platform. This module is an Eight (8) channel input module that accepts unipolar and bipolar voltage signals specifically, 0 to 10V and +/-10VDC respectively, and current input signals such as 4-20 mA. This module converts the accepted signal to digital data with a resolution of 12 bits. This module operates without an external power supply. It has an optical isolation rating of 250VAC continuous and 1500VAC for a 1-minute duration. Available LED status indicators to the IC200ALG260 to include Internal Power LED (INT PWR LED) and OK LED. It has maximum backplane current consumption of 130 mA at 5 VDC with built-in Loss of internal power diagnostic capability. Configurable parameters to this module include Range select and Mode Select. This module has a maximum input impedance of 126 kOhms in voltage mode and a maximum of 200 Ohms when in current mode.
The IC200ALG260 input module is a GE Fanuc analog input module from the GE Versamax PLC series that can act as an interface device for either 8 current inputs or 8 voltage inputs. All 8 of its inputs are single-ended and they are arranged in a single group. The IC200ALG260 analog input module consumes 130 milliamps of maximum current from the backplane at a voltage rating of 5 Volts. The module is powered by the power supply in the backplane. It does not need power from an external source unless it has transceiver devices connected to it. This module also does not have a thermal derating feature. There are 2 LED indicators on the IC200ALG260 analog input module.
