GE DS200PTCTG1B Printed Circuit Board
General info
| Manufacture | GE |
| Item No | DS200PTCTG1B |
| Article number | DS200PTCTG1B |
| Series | Mark V |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | Printed Circuit Board |
Detailed data
GE DS200PTCTG1B Printed Circuit Board

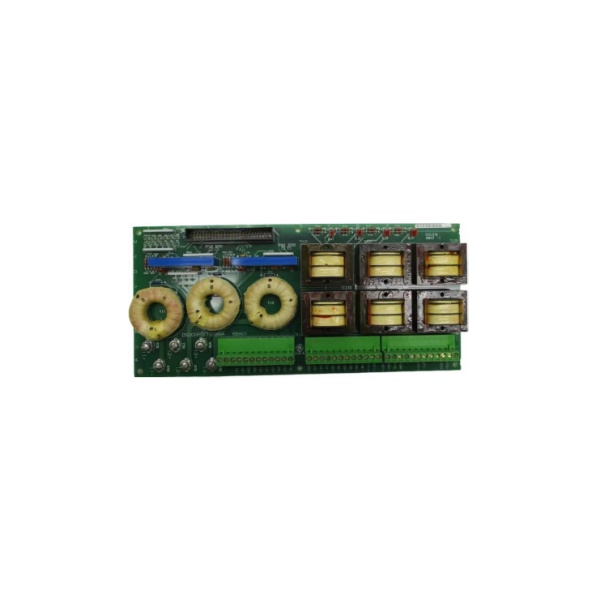

The General Electric signal conditioner board DS200PTCTG1B has 1 terminal block with terminals for 72 signal lines. It also contains 1 50-pin connector. The terminal IDs on the terminal block include OUT2, OUT1, COM1, COM2, P15, SO21, and L23. It also contains terminals for 6 signal lines.
The GE signal conditioner board DS200PTCTG1B is also equipped with test points, which provide a means for qualified personnel to test the functions of various circuits on the board. To use the test points, the board must be removed from the drive and placed on a clean, level surface, and the board must also be placed on an electrostatically protected surface. For example, a workbench or desk is a suitable work area. A wrist strap is a must-have equipment to have on hand.
The test equipment must be in good working order and calibrated prior to the tests you plan to perform. The probes must be compatible with the tester and must not have worn insulation or frayed cables. In other words, the probes must be in good working order to avoid damage to the user or the product.
