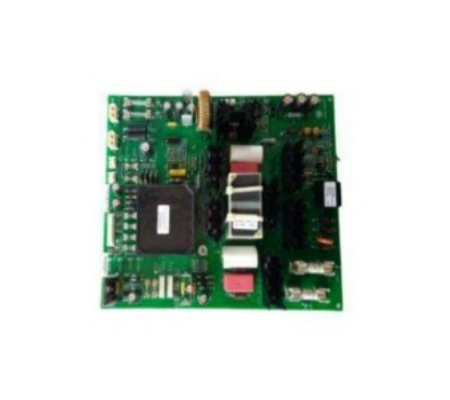

GE 531X175SSBAYM2 PC BOARD DC300 INTERFACE
General info
| Manufacture | GE |
| Item No | 531X175SSBAYM2 |
| Article number | 531X175SSBAYM2 |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | PC BOARD DC300 INTERFACE |
Detailed data
GE 531X175SSBAYM2 PC BOARD DC300 INTERFACE
The 531X175SSBAYM2 uses Jumper Ports to control the smaller circuits on the surface of the circuit board. The 531X175SSBAYM2 stores the data to help it operate split between thirty-six Integrated Circuits.
When looking in a manual the Integrated Circuits may also be identified as IC’s, chips or microchips. The 531X175SSBAYM2 has a toggle switch on the upper edge of the circuit board. Next to this toggle switch is two red light emitting diodes (LEDs).
The 531X175SSBAYM2 has thirty-six gold metal strips on the upper edge of the circuit board. Along the bottom is a multi-pronged metal male terminal used for connection purposes.
The 531X175SSBAYM2 has two components that seem to be the polar opposite. One disperses energy while the other stores' energy. The component that disperses energy is known as a resistor. The resistor converts energy into heat in order to get rid of it. The component that stores the energy is known by one of three names condensers, capacitors, or condensators.
