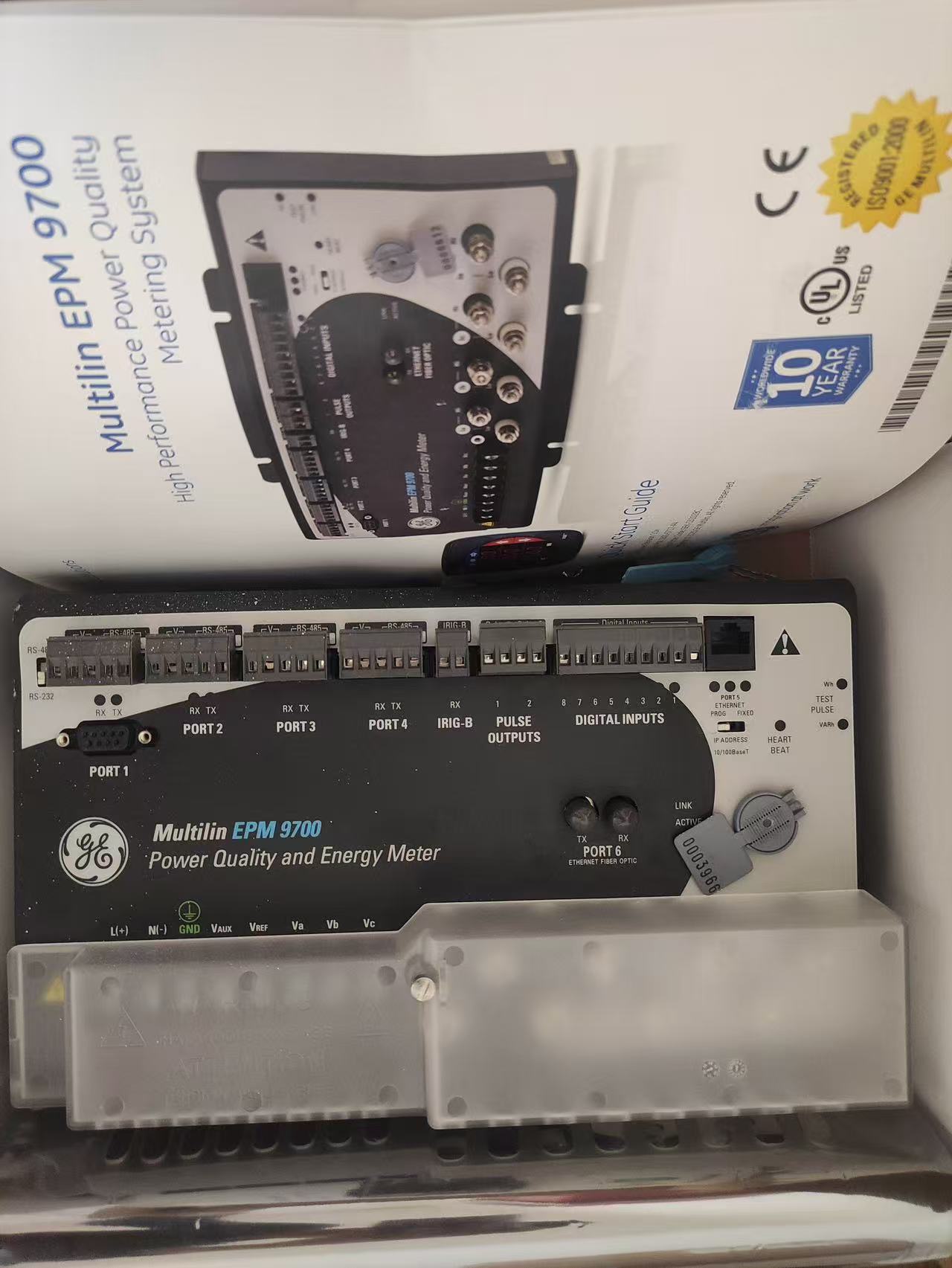

GE PL9700X11AXXX High Performance Power Quality Metering
General info
| Manufacture | GE |
| Item No | PL9700X11AXXX |
| Article number | PL9700X11AXXX |
| Series | GE FANUC |
| Origin | United States（US） |
| Dimension | 180*180*30(mm) |
| Weight | 0.8 kg |
| Customs Tariff Number | 85389091 |
| Type | High Performance Power Quality Metering |
Detailed data
GE PL9700X11AXXX High Performance Power Quality Metering
The Multilin™ EPM 9700 is a high performance power quality meter with advanced logging capabilities and flexible communication options. The EPM 9700 provides a comprehensive picture of power quality and consumption for metered points within an electrical system, empowering users to make power related analysis and decisions quickly and effectively, as well as recording data for accurate analysis and reconciliation.
The versatile transducer and optional display installation, along with comprehensive and innovative metering and communication features, makes the EPM 9700 ideal for utility, industrial and commercial power quality applications.
The EPM 9700 is also an enhanced, direct retrofit upgrade replacement for the EPM 9450/9650.
Key Benefits
-deal for revenue and power quality monitoring with high resolution waveform recording (up to 1024 samples/cycle) and high accuracy 0.06% watt-hour energy metering with demand and time of use capture
-Improved metrology uses high and low gain sensors for high 0.06% accuracy as well as installation flexibility using both 1A and 5A secondary CTs
-Large 1.2GB logging memory makes it possible to log years of captured data
-Easy integration with 6 standard ports (4 serial/2 Ethernet) and protocol support for simultaneous Modbus and DNP3 communications and IEC 61850 ed.2 with GOOSE Messaging (Software option B)
-Post Installation upgradable for future requirements with modular communications external I/O and software option functionality upgrades
-Separate meter unit and optional display for flexible and easy installation
-Direct upgrade for EPM 9450/9650 with same wiring/cutout for meter unit/display installation
Applications
-Power quality alarming/event capture for utility or industrial event investigation/reconciliation, ensuring uptime and predictive maintenance for critical power quality sensitive assets utility substation, data centers, manufacturing, hospitals
-Revenue energy billing or reconciliation (demand, time of use) and for utility or industrial applications
-High speed data capture and control in applications such as generation or renewables
-Specialized utility/industrial power quality reporting for Class A IEC 61000-4-30 Ed. 3, IEC 61000-4-15 Flicker, IEC 61000-4-7 Harmonics and EN50160 standards
Advanced Metering, Logging and Communications for Utility or Industrial Applications:
The EPM 9700 provides high performance power quality analysis functions collecting data to support the reporting of the latest IEC 61000-4-30 Class A Edition 3 and EN50160 international standards and providing a deep perspective when investigating sources of faults, sags and swells, and harmonics to ensure asset uptime, monitor energy usage and power quality.
Essential power quality data and events are also captured, stored and time synced, allowing for complete post-fault analysis of events. With 6 communications ports and support for Modbus and DNP3 protocols, the EPM 9700 is easy to integrate into a SCADA or data analysis system. The EPM 9700 HTML 5 web server also provides remote, simplified, secure access to data. The EPM 9700 meter base and optional P40NPLUS display allow for easy and flexible installation options, making it a clear choice for critical revenue accurate metering for power utility or industrial applications.
